Acoustic Mechanics of Vertical Baffles and Ceiling Clouds
Controlling Reverberation and Echo in High-Volume Architectural Spaces
Suspended acoustic baffles and floating ceiling clouds are specialized architectural components engineered to control sound energy in spaces where traditional, wall-to-wall acoustic tile drop ceilings are not structurally feasible or design-appropriate. In modern commercial construction—such as exposed-structure open offices, glass-walled corridors, concrete industrial conversions, and expansive school multi-purpose rooms—sound waves bounce freely off hard, reflective parallel surfaces. This creates excessive reverberation time (RT), drastically reducing speech intelligibility and increasing ambient noise strain.
The Mechanics of 360-Degree Sound Absorption
While a standard lay-in ceiling tile only absorbs sound on its downward-facing surface, suspended elements leverage geometric exposure to maximize noise reduction.

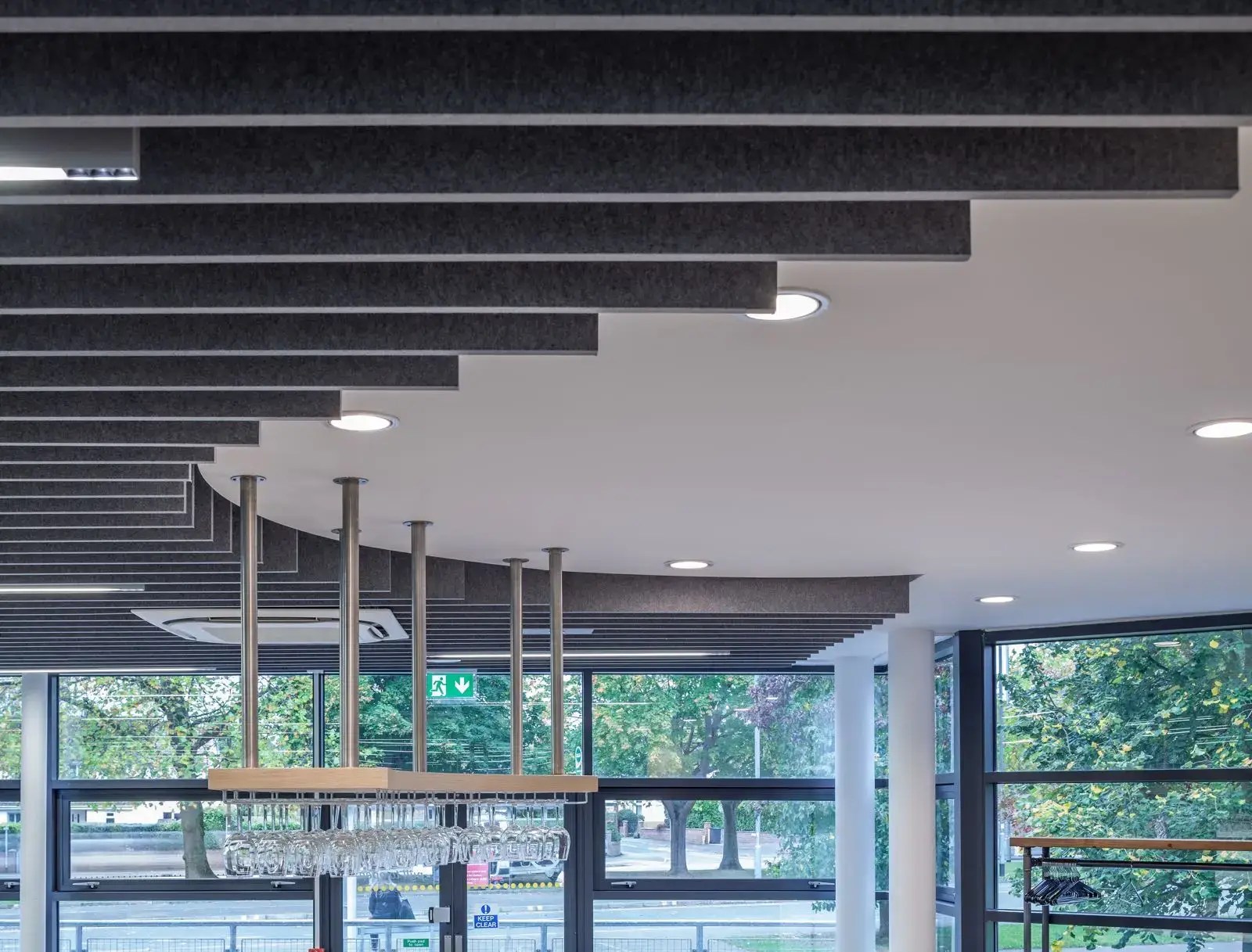

Double-Sided Absorption (Vertical Baffles): By hanging vertically from the roof structure, acoustic baffles expose both their front and back faces to the room's sound field. This effectively doubles the available square footage of sound-absorbing material relative to the footprint of the panel.

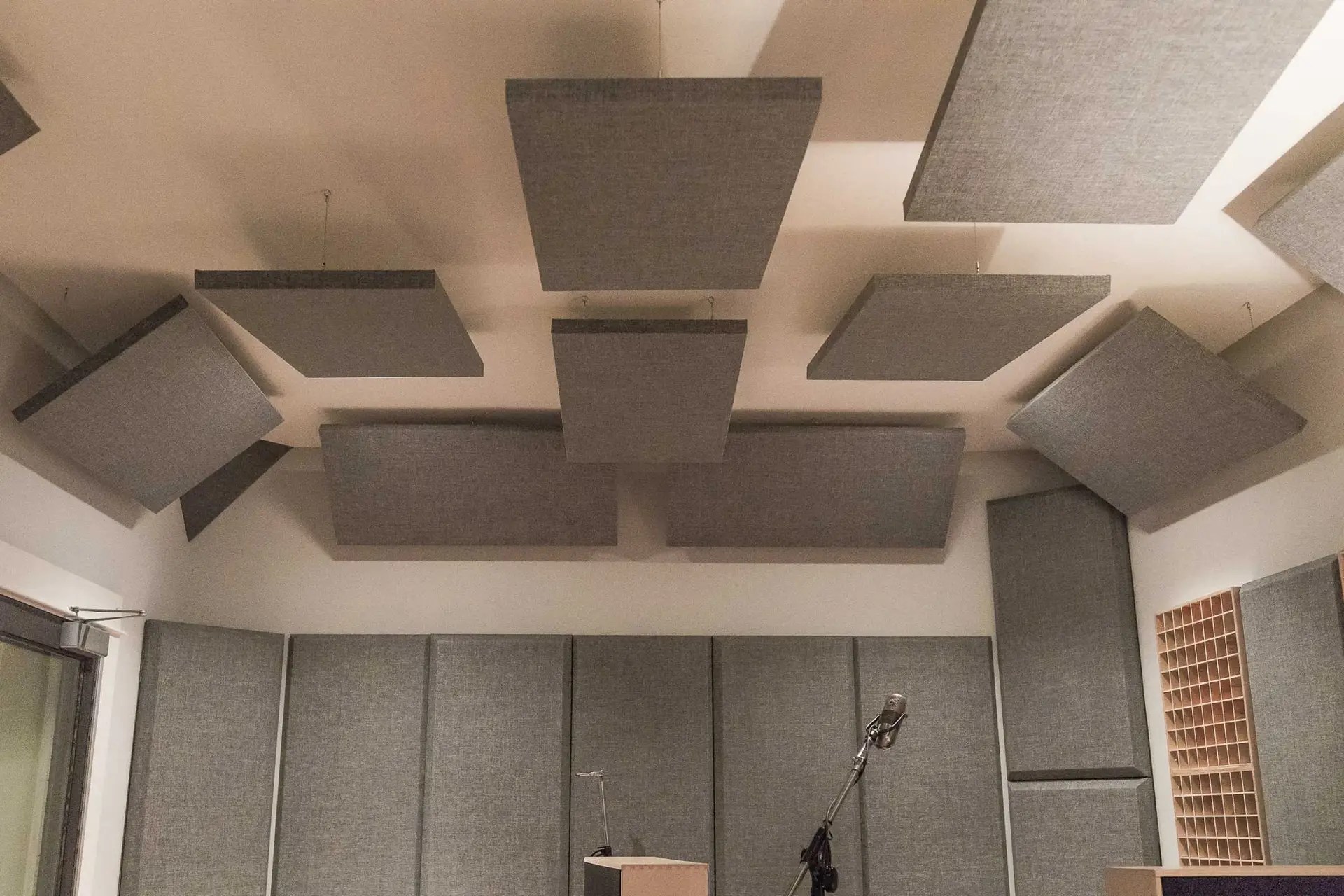

The Plenum Trap (Horizontal Clouds): Floating ceiling clouds absorb direct upward sound energy from the room below. Any sound waves that manage to pass through or wrap around the cloud hit the structural ceiling deck above, bounce back down, and are trapped by the un-faced top surface of the cloud.
Understanding Technical Performance Metrics
To correctly specify floating layouts, commercial architects rely on two core industry metrics:
Noise Reduction Coefficient (NRC): This measures the percentage of sound energy absorbed by the panel substrate, rated from 0.00 (perfect reflection) to 1.00 (perfect absorption). High-performance fiberglass and felt clouds typically achieve an NRC of 0.85 to 1.00, meaning they absorb up to 100% of the acoustic energy striking them.
Sabins Per Unit: Because baffles and clouds hang as independent, spaced-out elements rather than a solid ceiling, their performance is often measured in Sabins (a direct unit of sound absorption). This metric calculates the exact acoustic footprint of a single standalone unit based on its overall size and thickness.
Strategic Spatial Placement
For optimal performance, baffles are arrayed across open ceilings in alternating or linear rows, effectively chopping up horizontal sound paths before they can travel across a large room. Horizontal clouds are strategically deployed directly above high-noise or high-focus zones—such as boardroom tables, customer reception desks, or collaborative open-office pods—to create localized acoustic comfort without sacrificing the open, industrial aesthetic of an exposed deck.
